Dobinsons - 1.5-3.5" IMS Lift Kit for Toyota FJ Cruiser 2007-2009
Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilising the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.
The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micropolished, hard chromed and heat treat shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.
Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance - Enjoy the ride
Dobinsons offers this complete suspension system for the 2006 to 2009 Toyota FJ Cruiser with a 4.0L V6, with various lift height and coil load options to suit whatever accessory weight you have added to your vehicle, and your desired lift height.
- Complete suspension kit for 4x4 Off Road Use, fine tuned to match the vehicle
- Fully re-buildable and re-valvable
- vZero shock fade in all terrains with full load
- Superior Designed Nitro Gas Monotube Shocks, thicker walls, longer travel
- Corrosion resistant (EDP Surface Protection)
- Direct, bolt-on replacement for easy fitment
- 50mm hi-flow CNC 6061 Billet alloy piston
- Heavy duty single piece lower leg
- Japanese NOK Multi-Lip seals, Fuchs German shock absorber oil, Natural Rubber Bushings for reduced noise vibration and flexibility
- High Quality Australian-made coil springs, heat treated, fully scragged, powder coated

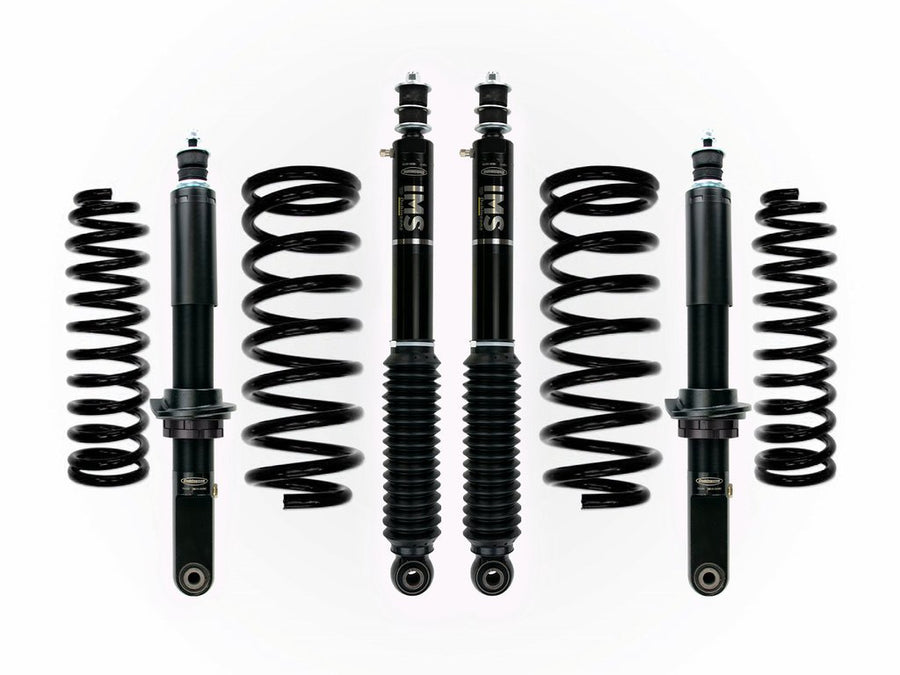

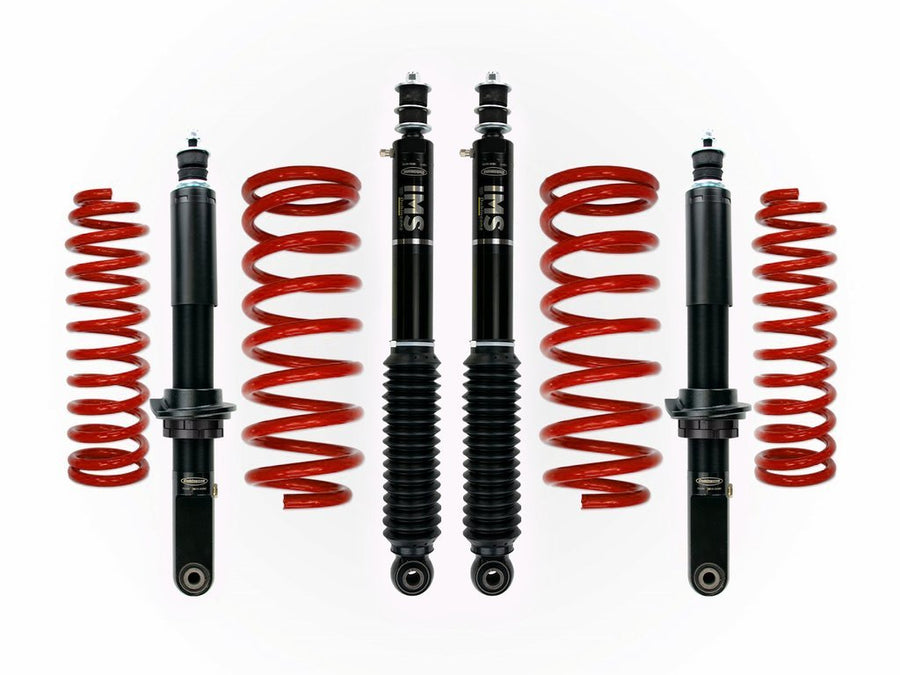

- Includes 2 Front IMS Struts, 2 Rear IMS Shocks, 4 Coil Springs.
- ***2.5" or more of lift, new UCA's are recommended***

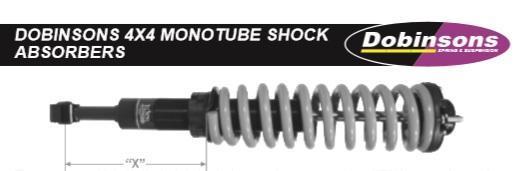

****Coil seat for IMS59-50220 should be set at 226mm(8.83") for 3 inchesof lift, for 2 inches of lift the coil seat should be set at 213mm(8.38") from the strut bushing eye. Picture black and white on the listing is to reference how to measure. Please check our instructions section or reach out if you have any questions. If done incorrectly you can damage the shocks, springs and vehicle.*****
KDSS Vehicles may not use long travel or lift more than 2" due to KDSS system complications.Most customers add 3" of lift to the front and around 2" to the rear, to help level out the vehicle from front to back.
NOTE: For a lift of 3" in the rear, new extended brake lines and minimum of 2" bump stop extensions are required to be used with our long travel rear shocks. At full extension, the stock brake lines could get damaged, and with stock bump stops in place, the shocks will bottom out before the bump stop fully engages, which will quickly destroy the shocks.
